BC860C, BC860, Silicon PNP transistor

BC860 Rev.E Mar.-2016 DATA SHEET / .
SOT-23 PNP 。Silicon PNP transistor in a SOT-23 Plastic Package.

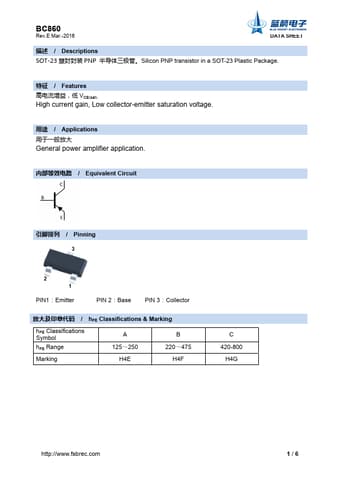

datasheet Preview Page 1 from Datasheet4u.com

BC860-BLUEROCKETELECTRONICS.pdf

BC860C Datasheet Preview — This datasheet PDF includes multiple part numbers: BC860C, BC860. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BC860C, BC860

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

892.89 KB

Description:

Silicon PNP transistor

Note:

This datasheet PDF includes multiple part numbers: BC860C, BC860.
Please refer to the document for exact specifications by model.

Applications

* General power amplifier application. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range A 125～250 B 220～475 Marking H4E H4F C 420-800 H4G http://www. fsbrec. com 1/6 BC860 Rev. E Mar. -2016
