BC860W, BC859W - PNP general purpose transistors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC860W, BC859W. Please refer to the document for exact specifications by model.

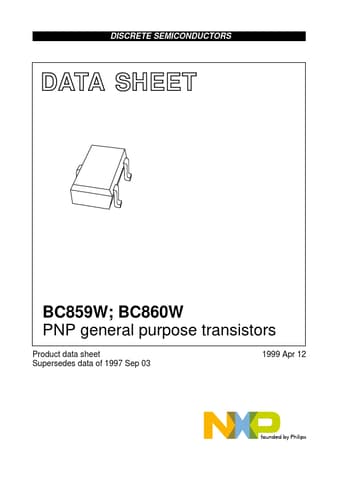

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BC860W, BC859W
Manufacturer NXP
File Size 62.18 KB
Description PNP general purpose transistors
Datasheet download datasheet BC859W_PhilipsSemiconductors.pdf
Note This datasheet PDF includes multiple part numbers: BC860W, BC859W.
Please refer to the document for exact specifications by model.

BC860W Product details

Description

DESCRIPTION PNP transistor in a SOT323 plastic package.NPN complements: BC849W and BC850W.MARKING TYPE NUMBER BC859W BC859BW BC859CW MARKING CODE 4D∗ 4B∗ 4C∗ TYPE NUMBER BC860W BC860BW BC860CW Note 1. ∗ = - : Made in Hong Kong.∗ = t : Made in Malaysia.MARKING CODE 4H∗ 4F∗ 4G∗ handbook, halfpage 1 Top view 3 1 2 MAM048 3 2 Fig.1 Simplified outline (SOT323) and symbol.LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL VCBO VCEO VEBO IC IC
