BR120N04 - N-CHANNEL MOSFET

BR120N04 Description

BR120N04 Rev.D Nov.-2015 DATA SHEET / .
TO-220 N MOS 。N-CHANNEL MOSFET in a TO-220 Plastic Package.

BR120N04 Applications

* ， PFC 。 These devices are well suited for high efficient switched mode power supplies，Active power factor correction, electronic lamp ballast based on half bridge topology. / Equivalent Circuit / Pinning 1 23 PIN1：G PIN 2：D PIN 3：S / hFE Classifications & Marking 。 See Marking Instructions

📥 Download Datasheet

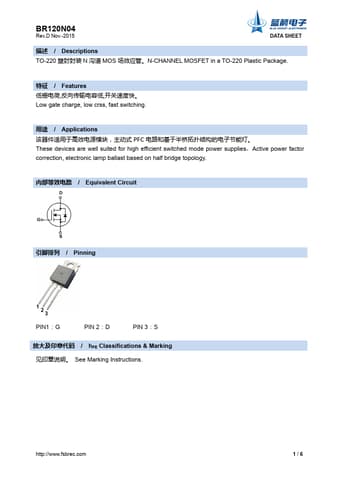

Preview of BR120N04 PDF
datasheet Preview Page 2 datasheet Preview Page 3
