BR1220 Datasheet - Panasonic

BR1220 Poly-carbonmonofluoride Lithium Coin Batteries

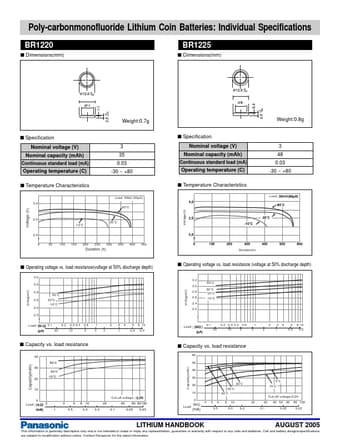

Poly-carbonmonofluoride Lithium Coin Batteries: Individual Specifications BR1220 Dimensions(mm) BR1225 Dimensions(mm) 10 0.2 Weight:0.7g Weight:0.8g Specification Nominal voltage (V) Nominal capacity (mAh) Continuous standard load (mA) Operating temperature (C) 3 35 0.03 -30 ~ +80 Temperature Characteristics Load: 30kΩ (90µA) 3.0 60˚C Voltage (V) 2.5 20˚C -10˚C 2.0 ~~ 0 50 100 150 200 250 300 350 400 450 Duration (h) Specification Nominal voltage (V) No.

BR1220 Datasheet (44.04 KB)

BR1220 Datasheet Preview — Preview of BR1220 PDF

Datasheet Details

Part number:

BR1220

Manufacturer:

Panasonic

File Size:

44.04 KB

Description:

Poly-carbonmonofluoride lithium coin batteries.
