BR1632 Datasheet - Panasonic

BR1632 Lithium Coin Batteries

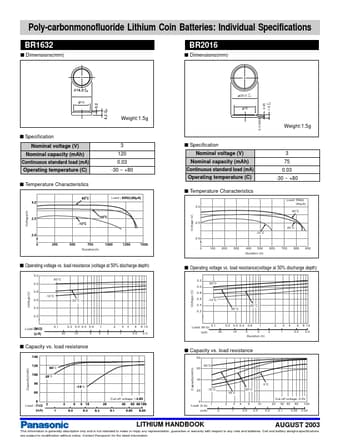

Poly-carbonmonofluoride Lithium Coin Batteries: Individual Specifications BR1632 Dimensions(mm) BR2016 Dimensions(mm) 20.0 +0 -0.3 0.05 +0 1.6 -0.2 0.3 MAX 12 16 Weight:1.5g Weight:1.5g Specification Nominal voltage (V) Nominal capacity (mAh) Continuous standard load (mA) 3 120 0.03 -30 ~ +80 Specification Nominal voltage (V) Nominal capacity (mAh) Continuous standard load (mA) 3 75 0.03 -30 ~ +80 Operating temperature (C) Temperature Characteristics O.

BR1632-Panasonic.pdf

BR1632 Datasheet Preview — Preview of BR1632 PDF

Datasheet Details

Part number:

BR1632

Manufacturer:

Panasonic

File Size:

45.83 KB

Description:

Lithium coin batteries.
