BR431 - Precision adjustable shunt regulator

BR431 Description

BR431 Rev.D Oct.-2015 / .
TO-92 。 Precision adjustable shunt regulator in a TO-92 Plastic Package.

BR431 Features

* 2.500V; 0.4%,0.8%; 1.0mA~100mA;; VO=Vref~37V;(:400μA);(:0.15Ω)。 Precise reference voltage to 2.500V;guaranteed 0.4%,0.8% reference voltage Tolerance; sink current capability,1.0mA~100mA;quick turn-on; adjustable Output voltage, VO=Vref~37V;low operational cathode current,400μA typical; 0.15Ω typi

BR431 Applications

* ,。 Linear regulators, adjustable power supply, switching power supply. / Equivalent Circuit / Pinning 1 23 PIN1:K PIN 2:A PIN 3:R / Marking 。See Marking Instructions

📥 Download Datasheet

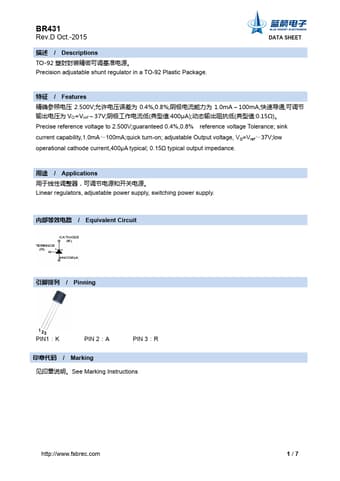

Preview of BR431 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BR431
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
896.83 KB
Datasheet
BR431-BLUEROCKETELECTRONICS.pdf
Description
Precision adjustable shunt regulator
