KTC3203 - Silicon NPN transistor

KTC3203 Description

KTC3203 Rev.E Mar.-2016 DATA SHEET / .
TO-92 NPN 。Silicon NPN transistor in a TO-92 Plastic Package.

KTC3203 Applications

* 。 High current application. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 100~200 Y 160~320 http://www. fsbrec. com 1/6 KTC3203 Rev. E Mar. -2016 / Absolute Maximum Ratings(Ta=25℃) Pa

📥 Download Datasheet

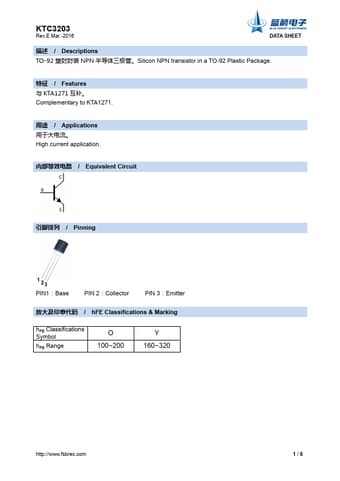

Preview of KTC3203 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC3203
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.25 MB
Datasheet
KTC3203-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
