KTC3205, Silicon NPN transistor

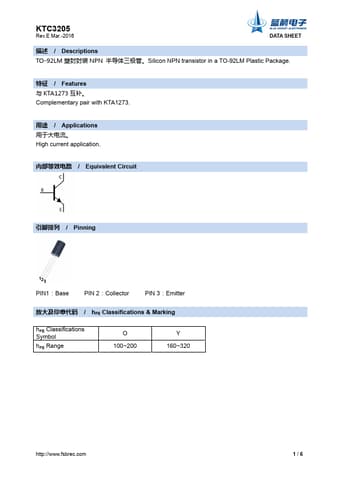

KTC3205 Rev.E Mar.-2016 DATA SHEET / Descriptions TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package.
/

Applications

* 。 High current application.
/ Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 100~200 Y 160~320 http://www.
fsbrec.
com 1/6 KTC3205 Rev.
E Mar.
-2016 / Absolute Maximum Ratings(Ta=25℃) Par
