LV10150JCT Ultrafast Recovery Diode

LV10150JCT Description

LV10150JCT Rev.E Mar.-2016 DATA SHEET / .
TO-220S  。Ultrafast Recovery Diode in a TO-220S Plastic Package.

LV10150JCT Applications

* ，，，OR-ing ，DC-DC 。 For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection. / Equivalent Circuit / Pinning 4 12 3 PIN1：Anode PIN 2：Cathode PIN 3：Anode / hFE Classifications & Marking 。See Marking

📥 Download Datasheet

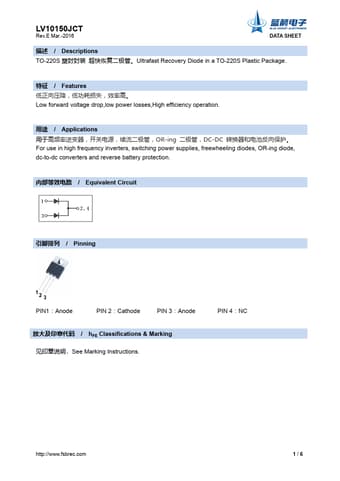

Preview of LV10150JCT PDF
datasheet Preview Page 2 datasheet Preview Page 3
