LV10150CT - Schottky Barrier Diode

LV10150CT Description

LV10150CT Rev.F Mar.-2016 / .
TO-220  。 Schottky Barrier Diode in a TO-220 Plastic Package.

LV10150CT Applications

* ，，，OR-ing ，DC-DC 。 For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection. / Equivalent Circuit / Pinning 12 3 PIN1：Anode PIN 2：Cathode PIN 3：Anode / hFE Classifications & Marking 。See Marking In

📥 Download Datasheet

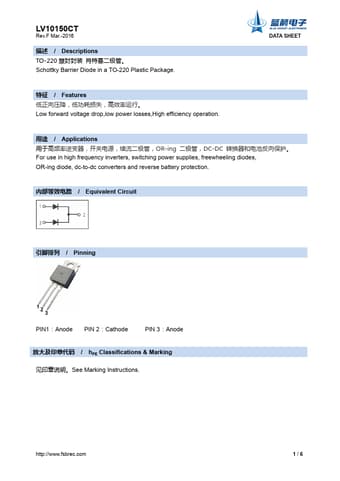

Preview of LV10150CT PDF
datasheet Preview Page 2 datasheet Preview Page 3
