MJE13002E2 - Silicon NPN transistor

MJE13002E2 Description

MJE13002E2 Rev.E Mar.-2016 DATA SHEET / .
TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package.

MJE13002E2 Applications

* 、、。 High frequency electronic lighting ballast applications,converters, inverters, switching regulators, etc. / Equivalent Circuit / Pinning 1 23 PIN1： Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions. http://www. fsbrec. com 1/6 MJE13002E2 Rev.

📥 Download Datasheet

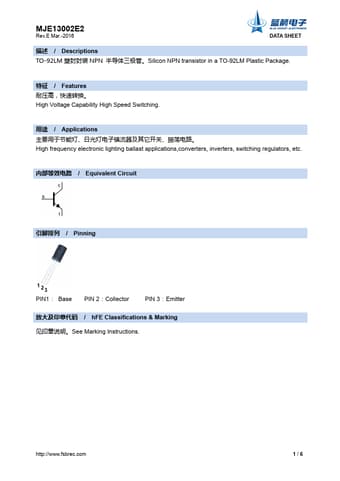

Preview of MJE13002E2 PDF
