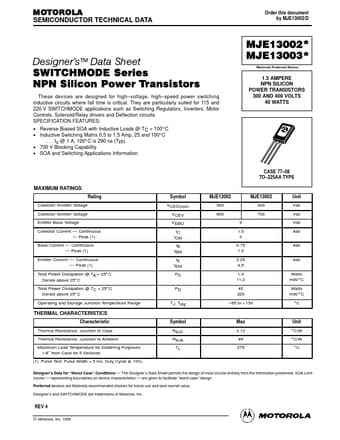

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by MJE13002/D
Designer's
SWITCHMODE Series NPN Silicon Power Transistors
These devices are designed for high–voltage, high–speed power switching inductive circuits where fall time is critical. They are particularly suited for 115 and 220 V SWITCHMODE applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits. SPECIFICATION FEATURES: • Reverse Biased SOA with Inductive Loads @ TC = 100_C • Inductive Switching Matrix 0.5 to 1.5 Amp, 25 and 100_C . . . tc @ 1 A, 100_C is 290 ns (Typ). • 700 V Blocking Capability • SOA and Switching Applications Information.
™ Data Sheet
MJE13002 * MJE13003 *
*Motorola Preferred Device
1.
