S8050MG - Silicon NPN transistor

Datasheet Summary

Description

SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

Features

S8550MG 。。 Complementary pair with S8550MG. HF Product. /.

BLUE ROCKET ELECTRONICS

📥 Download Datasheet

Datasheet Details

Part number	S8050MG
Manufacturer	BLUE ROCKET ELECTRONICS
File Size	854.81 KB
Description	Silicon NPN transistor
Datasheet	S8050MG Datasheet
Additional preview pages of the S8050MG datasheet.

📁 Similar Datasheet

S8050M - SILICON NPN TRANSISTOR (FOSHAN BLUE ROCKET)
S8050 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
S8050 - Silicon NPN Transistor (GME)
S8050 - NPN Transistor (Weitron Technology)
S8050 - NPN TRANSISTOR (AiT Semiconductor)
S8050 - LOW VOLTAGE HIGH CURRENT SMALL SIGNAL NPN TRANSISTOR (UTC)
S8050 - NPN Transistor (SeCoS)
S8050D - SILICON NPN TRANSISTOR (HEXIN SEMICONDUCTOR)
S8050LT1 - PLASTIC-ENCAPSULATE TRANSISTORS (Wing Shing Computer Components)
S8050LT1 - NPN Transistor (Tuofeng Semiconductor)

Other Datasheets by BLUE ROCKET ELECTRONICS

S8050A - Silicon NPN transistor
S8050W - Silicon NPN transistor

Full PDF Text Transcription

Click to expand full text

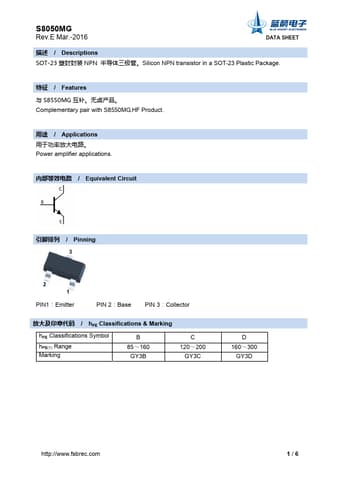

S8050MG Rev.E Mar.-2016 DATA SHEET / Descriptions SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package. / Features S8550MG 。。 Complementary pair with S8550MG.HF Product. / Applications 。 Power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE(1) Range Marking B 85～160 GY3B C 120～200 GY3C D 160～300 GY3D http://www.fsbrec.com 1/6 S8050MG Rev.E Mar.
