S8050M - SILICON NPN TRANSISTOR

Datasheet Summary

Description

SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

Features

S8550M 。 Complementary pair with S8550M. /.

FOSHAN BLUE ROCKET

📥 Download Datasheet

Datasheet Details

Part number	S8050M
Manufacturer	FOSHAN BLUE ROCKET
File Size	857.87 KB
Description	SILICON NPN TRANSISTOR
Datasheet	S8050M Datasheet
Additional preview pages of the S8050M datasheet.

📁 Similar Datasheet

S8050MG - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
S8050 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
S8050 - Silicon NPN Transistor (GME)
S8050 - NPN Transistor (Weitron Technology)
S8050 - NPN TRANSISTOR (AiT Semiconductor)
S8050 - LOW VOLTAGE HIGH CURRENT SMALL SIGNAL NPN TRANSISTOR (UTC)
S8050 - NPN Transistor (SeCoS)
S8050A - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
S8050D - SILICON NPN TRANSISTOR (HEXIN SEMICONDUCTOR)
S8050LT1 - PLASTIC-ENCAPSULATE TRANSISTORS (Wing Shing Computer Components)

Other Datasheets by FOSHAN BLUE ROCKET

Full PDF Text Transcription

Click to expand full text

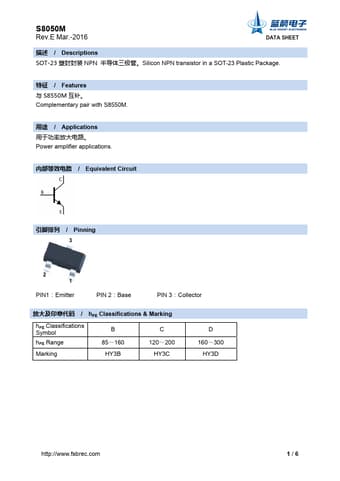

S8050M Rev.E Mar.-2016 DATA SHEET / Descriptions SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package. / Features S8550M 。 Complementary pair with S8550M. / Applications 。 Power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range B 85～160 C 120～200 Marking HY3B HY3C D 160～300 HY3D http://www.fsbrec.com 1/6 S8050M Rev.E Mar.-2016 / Absolute Maximum Ratings(Ta=25℃) Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg DATA SHEET Rating 40 25 6.
