HB140WX1-100 - TFT LCD

BOE

HB140WX1-100 Datasheet Preview — Preview of HB140WX1-100 PDF

Datasheet Details

Part number	HB140WX1-100
Manufacturer	BOE
File Size	1.38 MB
Description	TFT LCD
Datasheet	HB140WX1-100-BOE.pdf

HB140WX1-100 Product details

Description

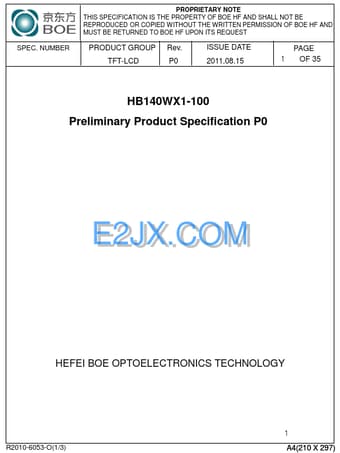

OF CHANGES Initial Release DATE 2011.08.15 ISSUE DATE 2011.08.15 PAGE 2 OF 35 PREPARED EE22JJXX..CCOOMM R2010-6053-O(2/3) 2 A4(210 X 297) SPEC.NUMBER PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.TITLE HB140WX1-100 Preliminary Product Specification Contents No.Items 1.0 General Description 2.0 Absolute Maximum ratings 3.0 Electrical specifications.4.0 Optical specifications.5.0 Interface Connection 6.0 Signal Timing Specification 7.0 Signal Timing waveforms 8.0 Input Signals, Dis

Features

1 Channel LVDS Interface with 1 pixel / clock.
Thin and light weight.
6-bit color depth, display 262K colors.
Single LED Lighting Bar. (Top side/Horizontal Direction).
Data enable signal mode.
Side Mounting Frame.
Green Product (RoHS & Halogen free product).
On board LED Driving circuit.
Low driving voltage and low power consumption.
On board EDID chip R2010-6053-O(3/3) 4 A4(210 X 297).
