HB140WX1-500 - TFT LCD

BOE

HB140WX1-500 Datasheet Preview — Preview of HB140WX1-500 PDF

Datasheet Details

Part number	HB140WX1-500
Manufacturer	BOE
File Size	846.56 KB
Description	TFT LCD
Datasheet	HB140WX1-500-BOE.pdf

HB140WX1-500 Product details

Description

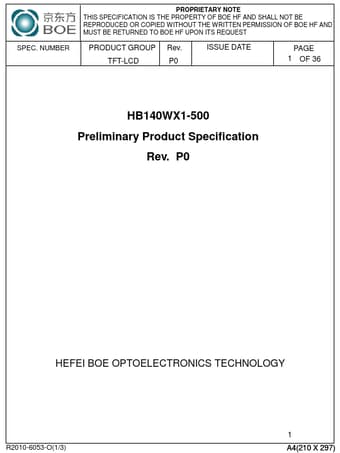

OF CHANGES DATE Initial Release 2012.06.28 ISSUE DATE PAGE 2 OF 36 PREPARED R2010-6053-O(2/3) 2 A4(210 X 297) SPEC.NUMBER PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.TITLE HB140WX1-500 Preliminary Product Specification Contents No.Items 1.0 General Description 2.0 Absolute Maximum ratings 3.0 Electrical specifications.4.0 Optical specifications.5.0 Interface Connection 6.0 Signal Timing Specification 7.0 Signal Timing waveforms 8.0 Input Signals, Display Colors & Gray Scale of

Features

Source Driver.
1 Channel LVDS Interface with 1 pixel / clock.
Thin and light weight.
6-bit color depth, display 262K colors.
Single LED Lighting Bar. (Down side/Horizontal Direction).
Data enable signal mode.
Up/Down Mounting Frame.
Green Product (RoHS & Halogen free product).
On board LED Driving circuit.
Low driving voltage and low power consumption.
On board EDID chip R2010-6053-O(3/3) 4 A4(210 X 297).
