HT10X21-331 - TFT LCD

Product Overview

BOE

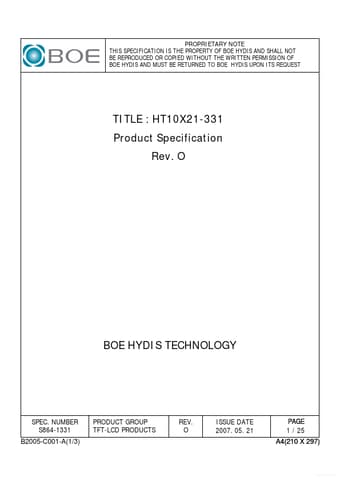

HT10X21-331 TFT LCD by BOE - Datasheet Preview — Datasheet preview – HT10X21-331

Datasheet Details

Part number	HT10X21-331
Manufacturer	BOE
File Size	519.09 KB
Description	TFT LCD
Datasheet	HT10X21-331 Datasheet
Additional preview pages of the HT10X21-331 datasheet.

Product details

Description

OF CHANGES Initial Release (HT10X21-331 is based on HT10X21311, and B/L sheet angle is only change to 5˚) DATE PREPARED O 07.05.21 S.W.Kang SPEC.NUMBER S864-1331 B2005-C001-A(2/3) SPEC.TITLE HT10X21-331 Product Specification PAGE 2 / 25 A4(210 X 297) Free Datasheet http://www.nDatasheet.com PRODUCT GROUP TFT-LCD PRODUCT REV O ISSUE DATE 2007.05.21 CONTENS NO.1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 General Description Absolute Maximum ratings Electrical sp

Features

1) 1Ch LVDS Interface with 1 pixel / clock 2) 6-bit color depth, Display 262,144 colors 3) Incorporated edge type back-light (1 lamp) 4) High luminance and contrast ratio, low reflection and wide viewing angle 5) Front Mounting Frame 6) DE (Data Enable) mode only 7) SLG (Single Level Gate) function use 8) RoHS Product 9) Optimization for direct bonding 1.3.
