HT12X14-100 LCD by BOE - Datasheet Preview — Datasheet preview – HT12X14-100

Datasheet Details

Part number	HT12X14-100
Manufacturer	BOE
File Size	290.02 KB
Description	LCD
Datasheet	HT12X14-100 Datasheet
Additional preview pages of the HT12X14-100 datasheet.

Product details

Description

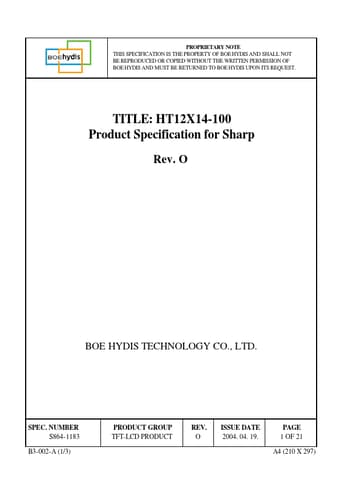

OF CHANGES Initial Release DATE 04.04.19 PREPARED B.C.Kim SPEC.NUMBER S864-1183 B3-002-A (2/3) SPEC.TITLE HT12X14-100 Product Specification for Sharp PAGE 2 OF 21 A4 (210 X 297) PRODUCT GROUP TFT-LCD PRODUCT REV.O ISSUE DATE 2004.04.19 Contents No 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 General Description Absolute Maximum Ratings Electrical Specifications Optical Specifications Interface Connection Signal Timing Specifications Signal Timing Waveforms of interface sig

Features

l Thin and light weight l 3.3 V power supply l Low driving voltage and low power consumption l 1 Channel LVDS Interface l Single CCFL (Bottom side/Horizontal Direction) l 262,144 colors l Data enable signal mode l Side Mounting Frame 1.3.
