HT12X14-300 Datasheet - BOE

HT12X14-300 LCD

OF CHANGES Initial Release Power Supply Current Change. (7 Page) -. Max. Current : 455 -> 475 Specify Max current pattern -. b) Max : V2 skip pattern -> V2 skip pattern (L28) General Description (4page) -. Information about RoHS product Label modification ( 20page) DATE 04.12.06 PREPARED C.Y.Cho .

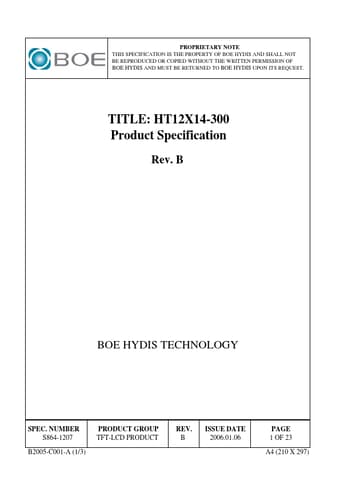

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE HYDIS AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE HYDIS AND MUST BE RETURNED TO BOE HYDIS UPON ITS REQUEST. TITLE: HT12X14-300 Product Specification Rev. B BOE HYDIS TECHNOLOGY SPEC. NUMBER S864-1207 B2005-C001-A (1/3) PRODUCT GROUP TFT-LCD PRODUCT REV. B ISSUE DATE 2006.01.06 PAGE 1 OF 23 A4 (210 X 297) PRODUCT GROUP TFT-LCD PRODUCT REV. B ISSUE DATE 2006.01.06 REVISION HISTORY REV. O ECN NO. .

HT12X14-300 Features

* z Thin and light weight z 3.3 V power supply z Low driving voltage and low power consumption z 1 Channel LVDS Interface z Single CCFL (Bottom side/Horizontal Direction) z 262,144 colors z Data enable signal mode z Side Mounting Frame z Al Bezel z Glare Pol.(C/F) z RoHS product SPEC. NUMBER S864-120
