NV133WUM-N61 Datasheet - BOE

NV133WUM-N61 TFT LCD

of Changes Initial Release Update Date 2020.05.14 2020.05.19 Prepared Peng Jinbao Peng Jinbao Designer Tang Fengjing(Array) Zhang Qianqian(CF) Wu Bingbing(Cell) Wang Taorong(EE) Xia Yeyin(MO) Tian Jing(QE) Wang Qi(Packing) REVIEWED APPROVED Peng Jinbao(PM) Manager Li Hongmin Wang Chun Wang Chun.

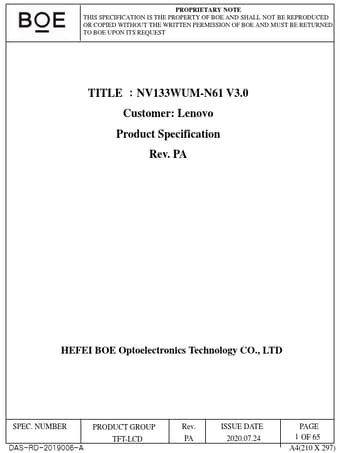

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE AND MUST BE RETURNED TO BOE UPON ITS REQUEST TITLE ：NV133WUM-N61 V3.0 Customer: Lenovo Product Specification Rev. PA HEFEI BOE Optoelectronics Technology CO., LTD SPEC. NUMBER PRODUCT GROUP Rev. ISSUE DATE PAGE DAS-RD-2019006-A TFT-LCD PA 2020.07.24 1 OF 65 A4(210 X 297) PRODUCT GROUP Customer Spec REV Rev. PA ISSUE DATE 2020.07.24 REVISION HISTOR.

NV133WUM-N61 Features

* 2 lane eDP1.3 interface with 2.7Gbps link rates

* Thin and light weight

* 8Bit color depth, sRGB 100%

* Single LED lighting bar (Bottom side/Horizontal Direction)

* Data enable signal mode

* Side mounting frame

* Green product (RoHS & Halogen free product)

* On boar
