NV125FHM-N62 - TFT LCD

BOE

📥 Download Datasheet

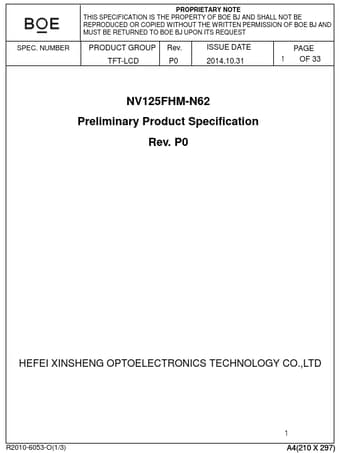

NV125FHM-N62 Datasheet Preview — Preview of NV125FHM-N62 PDF

Datasheet Details

Part number	NV125FHM-N62
Manufacturer	BOE
File Size	924.46 KB
Description	TFT LCD
Datasheet	NV125FHM-N62-BOE.pdf

NV125FHM-N62 Product details

Description

OF CHANGES Initial Release DATE 2014.10.31 ISSUE DATE 2014.10.31 PAGE 2 OF 33 PREPARED Jin Zhen R2010-6053-O(2/3) 2 A4(210 X 297) SPEC.NUMBER PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.TITLE NV125FHM-N62 Preliminary Product Specification Contents No.Items REVISION HISTORY CONTENTS 1.0 General Description 2.0 Absolute Maximum ratings 3.0 Electrical specifications.4.0 Optical specifications.5.0 Interface Connection 6.0 Signal Timing Specification 7.0 Input Signals, Displ

Features

2 lane eDP1.3 Interface with 1.62Gbps Link Rates.
Thin and light weight.
RGB 6-bit +Hi-FRC color depth, display 16.7M colors.
Single LED Lighting Bar. (Down side/Horizontal Direction).
No Mounting frame.
Green Product (RoHS & Halogen free product).
On board LED Driving circuit.
Low driving voltage and low power consumption.
On board EDID chip R2010-6053-O(3/3) 4 A4(210 X 297).
