MPD-425C - 250W DC-DC Power-Supply

MPD-425C Description

MPD-425C Industrial Power Supply 250W DC-DC Power Supply Input Range: 19~32VDC 2.0 11.0 TO SWITCH 0.42 0.35 0.4 DC OUTPUT WIRES 14.4 DC-DC 0..

MPD-425C Features

* Input Voltage: 19~32VDC
* Input Current: Max. 8A at 24VDC
* Inrush Current: Does not exceed 10A at 24VDC input, cold start at 25oC
* Ripple and Noise: < +/-1% peak to peak ripple and noise for each output
* Line Regulation: < +/-1% at rated load with +/-10% change in input voltage

📥 Download Datasheet

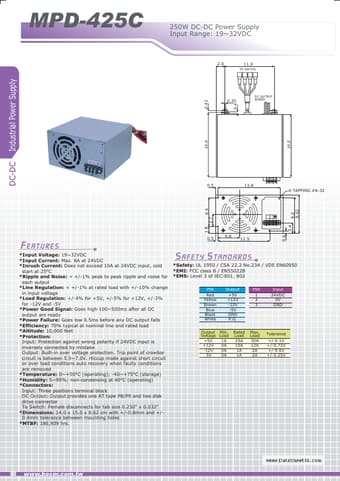

Preview of MPD-425C PDF

Datasheet Details

Part number
MPD-425C
Manufacturer
BOSER Technology
File Size
75.25 KB
Datasheet
MPD-425C_BOSERTechnology.pdf
Description
250W DC-DC Power-Supply
