MPD-810H Datasheet - BOSER Technology

MPD-810H 120W 10~30VDC DC-DC ATX Open Frame Power-Supply

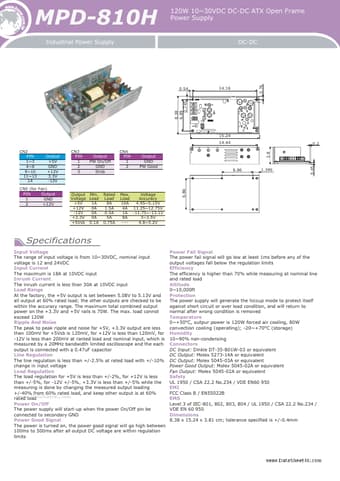

MPD-810H Industrial Power Supply 120W 10~30VDC DC-DC ATX Open Frame Power Supply DC-DC 0.54 8.38 6.89 0.745 14.16 15.24 14.44 CN2 PIN 1~3 4~8 9~10 11~13 14 Output +5V GND +12V 3.3V -12V CN3 PIN 1 2 3 Output PW On/Off GND 5Vsb CN4 PIN 1 2 Output GND PW Good 3.8 0.2 0.76 6.86 1.395 CN5 (for Fan) PIN Output 1 GND 2 +12V Output Min. Voltage Load +5V 1A +12V 0A -12V 0A +3.3V 0A +5Vsb 0.1A Rated Load 8A 1.5A 0.5A 5A 0.75A Max. Voltage Load Accuracy 10A 4.95~5.15V 4A 11.25~12.75V 1A -11.75~.

MPD-810H_BOSERTechnology.pdf

Preview of MPD-810H PDF

Datasheet Details

Part number:

MPD-810H

Manufacturer:

BOSER Technology

File Size:

116.98 KB

Description:

120w 10~30vdc dc-dc atx open frame power-supply.
