2029-35-SMLF, 2029-09-SMLF - Heavy Duty Gas Discharge Tube Surge Arrestor

BOURNS

📥 Download Datasheet

2029-35-SMLF Datasheet Preview — This datasheet PDF includes multiple part numbers: 2029-35-SMLF, 2029-09-SMLF. Please refer to the document for exact specifications by model.

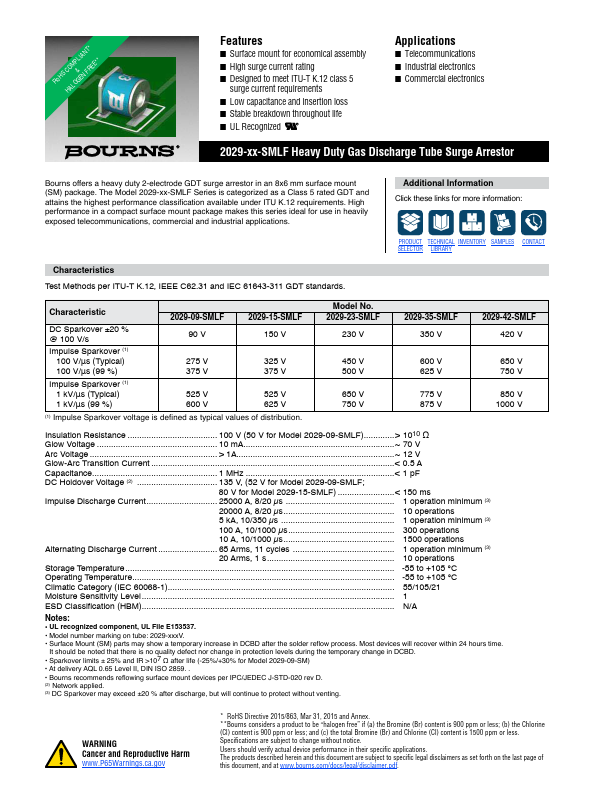

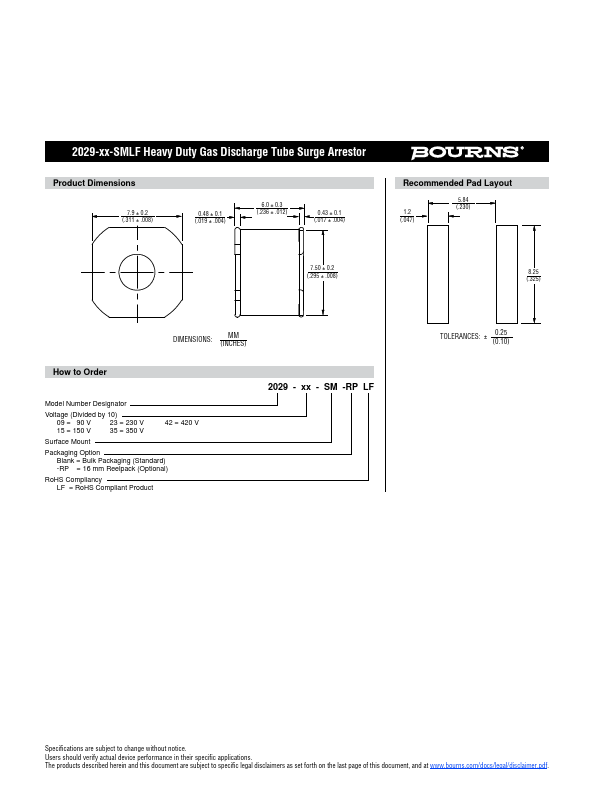

datasheet Preview Page 2

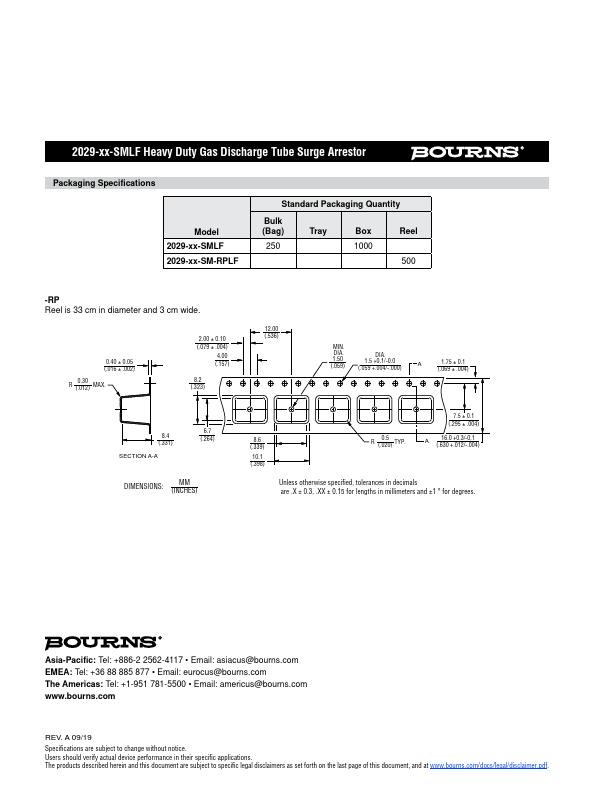

datasheet Preview Page 3

Datasheet Details

Part number	2029-35-SMLF, 2029-09-SMLF
Manufacturer	BOURNS
File Size	168.63 KB
Description	Heavy Duty Gas Discharge Tube Surge Arrestor
Datasheet	2029-09-SMLF-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: 2029-35-SMLF, 2029-09-SMLF. Please refer to the document for exact specifications by model.

2029-35-SMLF Product details

Features

es.
Surface mount for economical assembly.
High surge current rating.
Designed to meet ITU-T K.12 class 5 surge current requirements.
Low capacitance and insertion loss.
Stable breakdown throughout life.
UL Recognized.
