CSS4J-4026 Current Sense Resistor

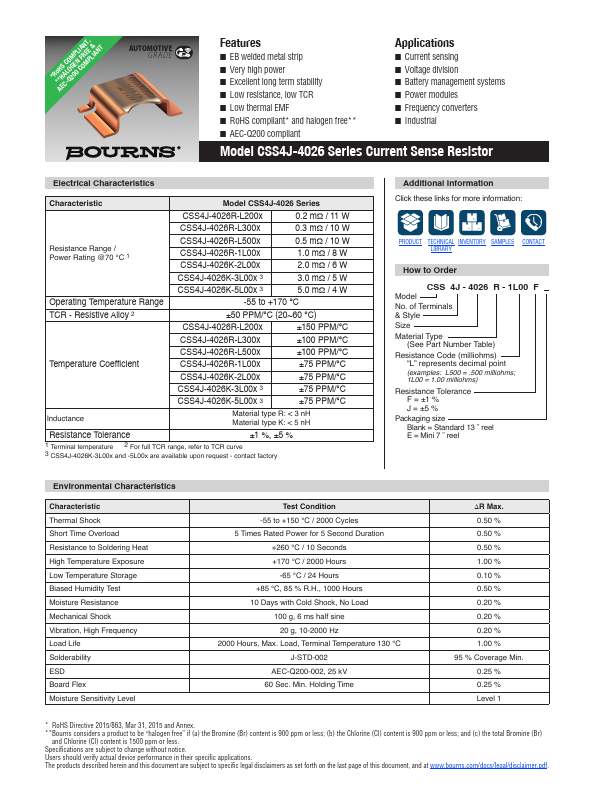

📥 Download Datasheet Datasheet Preview Page 1

Description

*Ro *AH *HESACCL-OQOM2G0EP0NLICFAORNMETEP, L&IANT AUTOMOTIVE GRADE 116L3C07S0S41J%-4 26R .

📥 Download Datasheet

Preview of CSS4J-4026 PDF

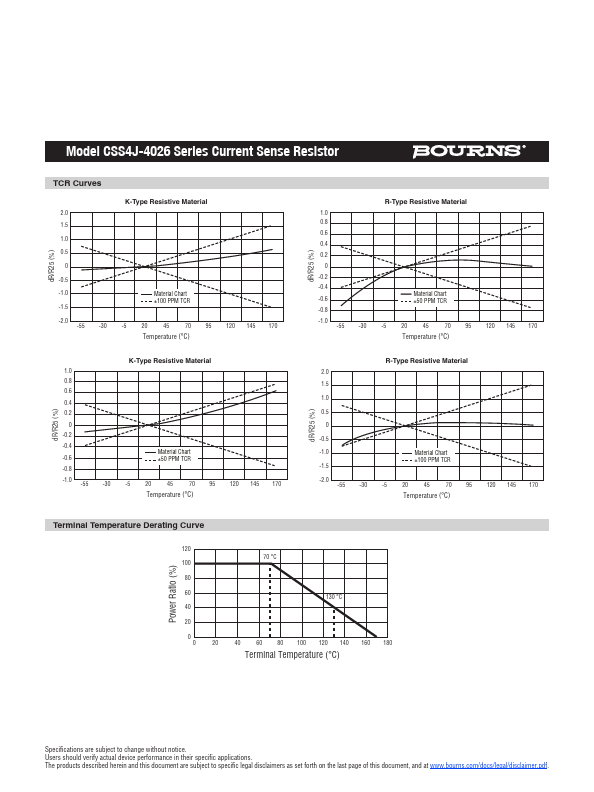

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CSS4J-4026
Manufacturer
BOURNS
File Size
804.25 KB
Datasheet
CSS4J-4026-BOURNS.pdf
Description
Current Sense Resistor

Features

* n EB welded metal strip n Very high power n Excellent long term stability n Low resistance, low TCR n Low thermal EMF n RoHS compliant
* and halogen free

Applications

* n Current sensing n Voltage division n Battery management systems n Power modules n Frequency converters n Industrial Model CSS4J-4026 Series Current Sense Resistor Electrical Characteristics Characteristic Model CSS4J-4026 Series CSS4J-4026R-L200x 0.2 mW / 11 W CSS4J-4026R-L300x 0.3 mW / 10
