CSS-1014B7

(CSS-1014B7 / CSS-1015B7) 1.0 Inch Single Digit Display

CSS-1014B7 Features

* 1. 1.0 inch (25.4mm) digit height. 2. Case mold type. 3. RoHs compliant. 4. Low power consumption. 5. ESD>1KV(HBM) 6. Easy mounting on P.C. board or socket. Device Selection Guide Chip Material InGaN InGaN Emitted Color Super Bright Blue Part No. CSS-1014B7 CSS-1015B7 Mechanical Dimensions - Desc

CSS-1014B7 General Description

: 1.0 Inch Single Digit Display Emitting Color Super Bright Blue CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL. NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Taiwan. Tel:886-2-2223-9696 Fax:886-2-2223-9377 OPTO PLUS TECHNOLOGI.

CSS-1014B7 Datasheet (217.38 KB)

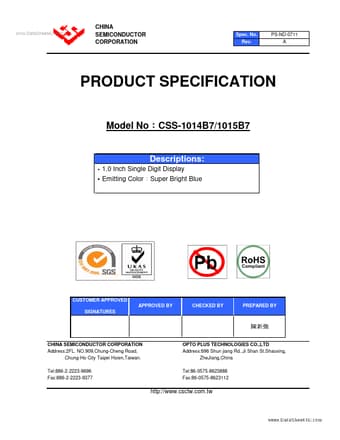

Preview of CSS-1014B7 PDF

Datasheet Details

Part number:

CSS-1014B7

Manufacturer:

China Semiconductor Corporation

File Size:

217.38 KB

Description:

(css-1014b7 / css-1015b7) 1.0 inch single digit display.
