CSS-J4D20

magnetic buzzer

CSS-J4D20 General Description

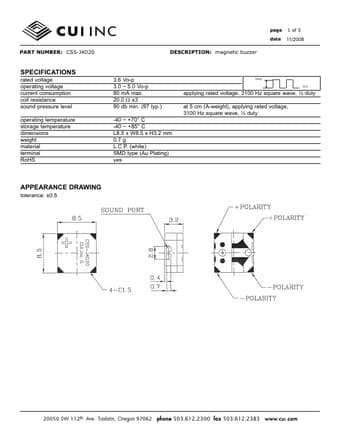

magnetic buzzer rev. page 1 of 5 date 11/2008 3.6 Vo-p 3.0 ~ 5.0 Vo-p 80 mA max. 20.0 Ω ±3 90 db min. (97 typ.) -40 ~ +70° C -40 ~ +85° C L8.5 x W8.5 x H3.2 mm 0.7 g L.C.P. (white) SMD type (Au Plating) yes Vo-p 0V applying rated voltage, 3100 Hz square wave, ½ duty at 5 cm (A-weight), applying .

CSS-J4D20 Datasheet (1.37 MB)

Preview of CSS-J4D20 PDF

Datasheet Details

Part number:

CSS-J4D20

Manufacturer:

CUI

File Size:

1.37 MB

Description:

Magnetic buzzer.
PART NUMBER: CSS-J4D20 SPECIFICATIONS rated voltage operating voltage current consumption coil resistance sound pressure level operating temperature s.
