SM41126EL - 10/100 Base-Tx Chip LAN Transformer

BOURNS

📥 Download Datasheet

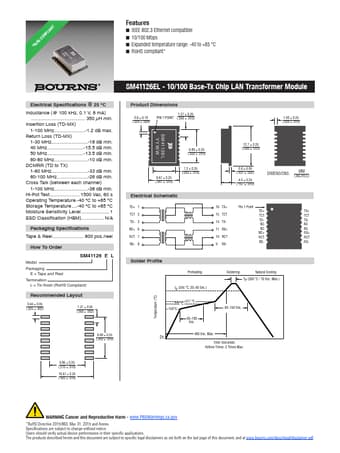

SM41126EL Datasheet Preview — Preview of SM41126EL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SM41126EL
Manufacturer: BOURNS
File Size: 464.02 KB
Datasheet: SM41126EL-BOURNS.pdf
Description: 10/100 Base-Tx Chip LAN Transformer

SM41126EL Product details

Features

n IEEE 802.3 Ethernet compatible n 10/100 Mbps n Expanded temperature range: -40 to +85 °C n RoHS compliant.
LEAD FREE SM41126EL - 10/100 Base-Tx Chip LAN Transformer Module Electrical Specifications @ 25 °C Product Dimensions Inductance (@ 100 kHz, 0.1 V, 8 mA) 350 µH min. Insertion Loss (TD-MX) 1-100 MHz-1.2 dB max. Return Loss (TD-MX) LVEREAoRDHSSFIORCNEOSEMAPRLE(IA.00N.2T64.
