SM4001-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS

📥 Download Datasheet

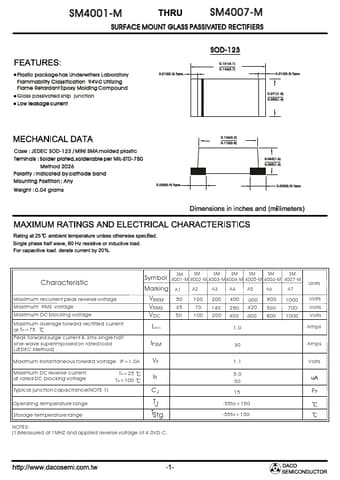

Datasheet preview – SM4001-M

Datasheet Details

Part number SM4001-M
Manufacturer DACO
File Size 321.94 KB
Description SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
Datasheet download datasheet SM4001-M Datasheet
Additional preview pages of the SM4001-M datasheet.

📁 Similar Datasheet

  • SM4001 - RECTIFIER DIODES (AiT Components)
  • SM4001 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4001 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4001 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4001 - Surface Mount Rectifiers (HY)
  • SM4001 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4001 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4001 - Standard silicon rectifier diodes (Semikron International)
  • SM4001 - Surface Mount Rectifiers (LGE)
  • SM4001 - SURFACE MOUNT GLASS PASSIVATED JUNCTION (EIC)
Other Datasheets by DACO
  • SM4002-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
  • SM4003-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
  • SM4004-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
  • SM4005-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
  • SM4006-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
  • SM4007-M - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS

Full PDF Text Transcription

Click to expand full text
SM4001-M SM4007-M SURFACE MOUNT GLASS PASSIVATED RECTIFIERS Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Utilizing Flame Retardant Epoxy Molding Compound Glass passivated ship junction Low leakage current 0.012(0.3) Type. SOD-123 0.161(4.1) 0.146(3.7) 0.012(0.3) Type. 0.071(1.8) 0.055(1.4) Case : JEDEC SOD-123 / MINI SMA molded plastic Teminals : Solder plated,solderable per MIL-STD-750 Method 2026 Polarity : Indicated by cathode band Mounting Postition : Any Weight : 0.04 grams 0.035(0.9) Type. 0.126(3.2) 0.110(2.8) 0.063(1.6) 0.055(1.4) 0.035(0.9) Type. Characteristic Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=75 Peak forward surge current 8.
