SM4001JD - Surface Mount Silicon Rectifier

SM4001JD Description

Elektronische Bauelemente SM4001JD ~ SM4007JD Voltage 50 ~ 1000 V 1.0Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-C” sp.

SM4001JD Applications

* Low leakage current MECHANICAL DATA Case: JEDEC SOD-123JD, molded plastic over passivated chip Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end MARKING Part Number SM4001JD SM4002JD SM4003JD SM4004JD Marking Code A1 A2 A3 A4 Part Number S

📥 Download Datasheet

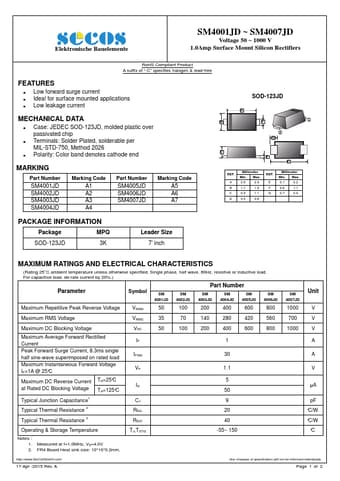

Preview of SM4001JD PDF
datasheet Preview Page 2

Datasheet Details

Part number
SM4001JD
Manufacturer
SeCoS
File Size
159.19 KB
Datasheet
SM4001JD-SeCoS.pdf
Description
Surface Mount Silicon Rectifier
