SM51625EL - LAN 10/100/1000 Base-T Transformer

SM51625EL Description

*RoHS COMPLIANT .

SM51625EL Features

* Compliant with IEEE802.3 standards
* Designed for 10/100/1000 Base-T and PoE++
* PoE up to 1.2 ADC per center tap
* RoHS compliant

SM51625EL Applications

* LAN
* Ethernet
* Power over Ethernet - PoE+ SM51625EL LAN 10/100/1000 Base-T (PoE++) Transformer Turns Ratio (TD:MX) ±5 % 1CT:1CT OCL (@100 kHz, 0.1 V, 28 mA, DC Bias) 80 μH min. Leakage Inductance (TD, MX Short) @100 kHz, 0.1 V 0.5 μH max. DCR (TD): 1.4 ohms max. Cww (TD to MX) @ 1

📥 Download Datasheet

Preview of SM51625EL PDF

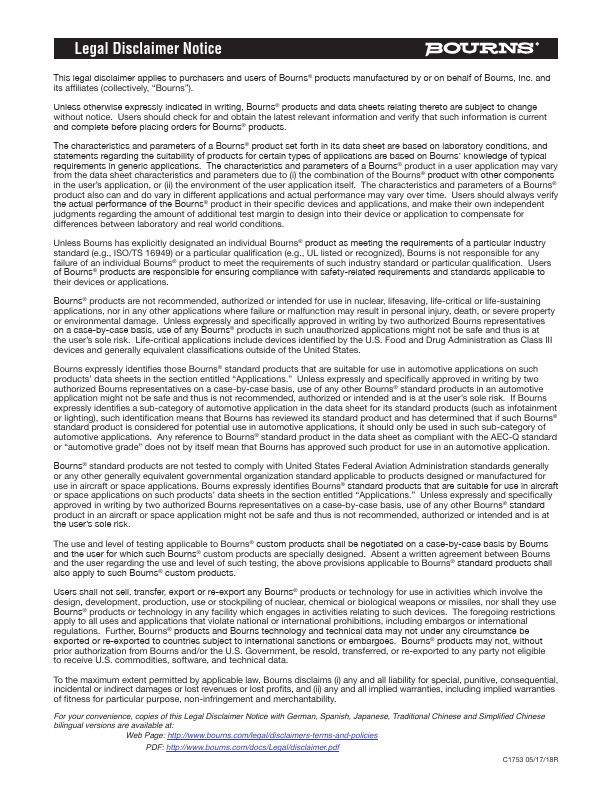

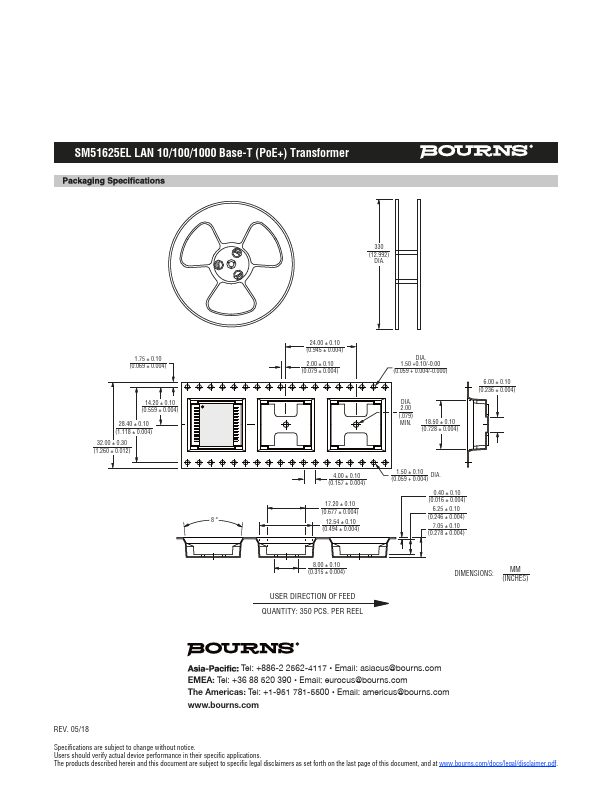

datasheet Preview Page 2 datasheet Preview Page 3
