SM51589PEL - LAN 10/100/1000 Base-T Transformer Modules

SM51589PEL Description

.

SM51589PEL Features

* n Compliant with IEEE802.3 standards n Designed for 10/100/1000 Base-T and PoE+ n 5K VAC dielectric withstanding voltage n RoHS compliant

SM51589PEL Applications

* n LAN n Ethernet n Power over Ethernet - PoE SM51589PEL LAN 10/100/1000 Base-T Transformer (PoE+) Modules Electrical Specifications @ 25 °C Turns Ratio (±5 %)1CT:1CT OCL (@100 kHz, 0.1 V, 8 mA, DC Bias) 350 µH min. Leakage Inductance (@100 kHz, 0.1 V) 0.5 µH max. Interwinding Capacitance @

📥 Download Datasheet

Preview of SM51589PEL PDF

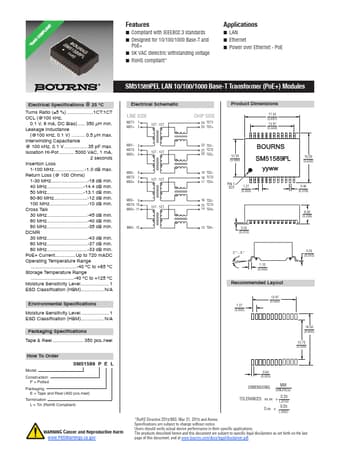

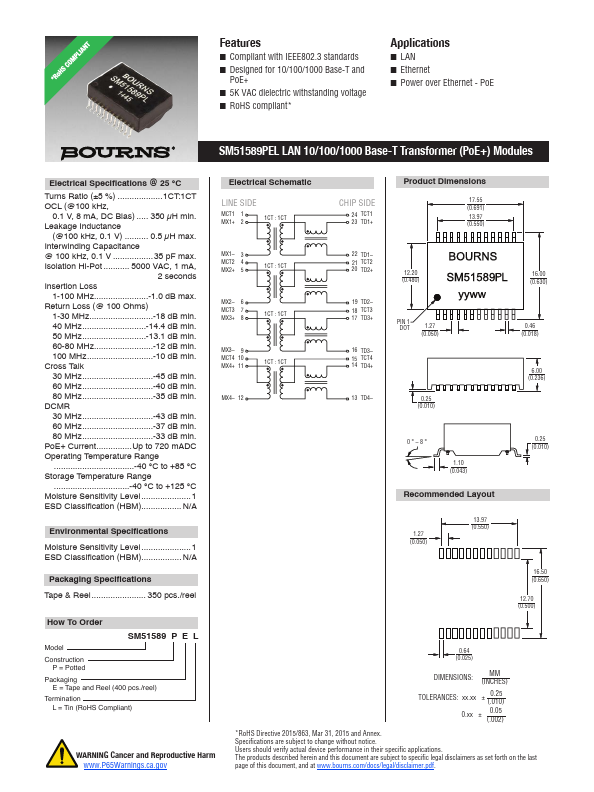

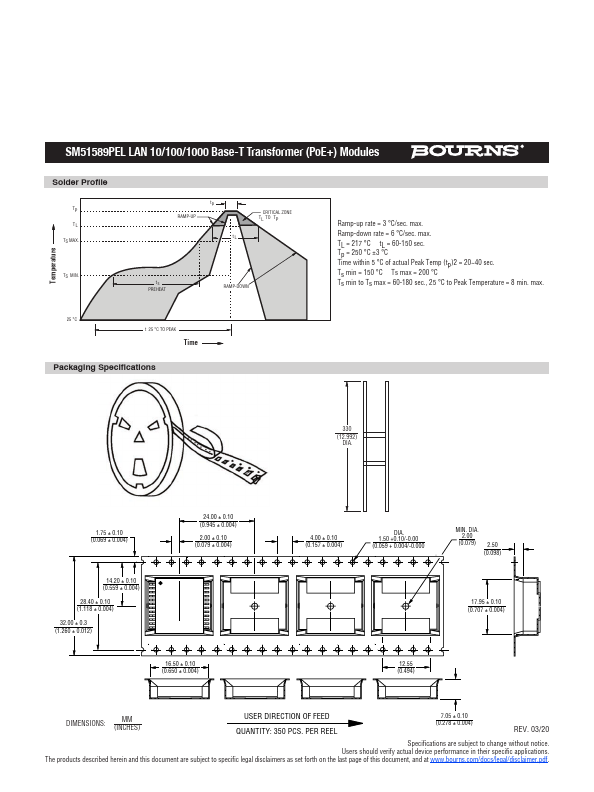

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM51589PEL
Manufacturer
BOURNS
File Size
431.85 KB
Datasheet
SM51589PEL-BOURNS.pdf
Description
LAN 10/100/1000 Base-T Transformer Modules
