SM5150AF Datasheet - Leshan Radio Company

SM5150AF, Schottky Barrier Rectifiers

SM5150AF thru SM5200AF Schottky Barrier Rectifiers Reverse Voltage 150 & 200V Forward Current 5.0A .

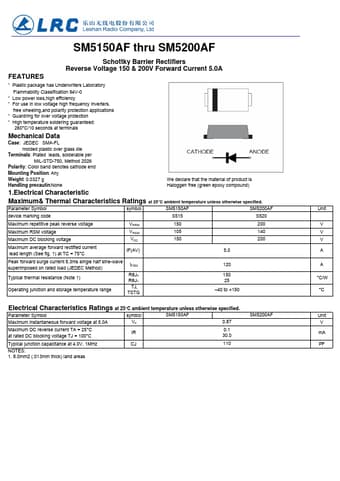

datasheet Preview Page 1 from Datasheet4u.com

SM5150AF-LeshanRadioCompany.pdf

SM5150AF Datasheet Preview — Preview of SM5150AF PDF

Datasheet Details

Part number:

SM5150AF

Manufacturer:

Leshan Radio Company

File Size:

203.03 KB

Description:

Schottky Barrier Rectifiers

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC SMA-FL molded plastic over glass die Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting
