SM5150AM-C, SM520AM-C - Surface Mount Schottky Barrier Rectifiers

SM5150AM-C Description

Elektronische Bauelemente SM520AM-C~SM5200AM-C Voltage 20~200V 5.0 Amp Surface Mount Schottky Barrier Rectifiers RoHS Compliant Product A suffix of .

SM5150AM-C Features

* Metal silicon junction, majority carrier conduction

SM5150AM-C Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications SMAM MECHANICAL DATA
* Case: SMAM
* Terminals: Solderable per MIL-STD-750, Method 2026
* Weight:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM5150AM-C, SM520AM-C. Please refer to the document for exact specifications by model.

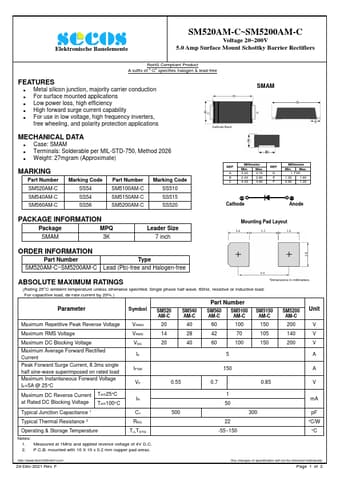

datasheet Preview Page 2

Datasheet Details

Part number
SM5150AM-C, SM520AM-C
Manufacturer
SeCoS
File Size
322.46 KB
Datasheet
SM520AM-C-SeCoS.pdf
Description
Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM5150AM-C, SM520AM-C.
Please refer to the document for exact specifications by model.
