SM5100 (SM5100 - SM5139) 500 WATT BATTERY CONVERTERS

A rugged converter, generating a range of DC outputs when supplied from 12, 24, 36 or 48V DC. The unit has a high impedance input for remote on/off control. The input and output are ohmically isolated, making installation very simple. The converter is isolated from chassis to 100V. The unit is pack.

PDS Design Solutions LTD ___________________________________________________________________________________________________________________________________________ THE CUSTOM POWER SPECIALISTS . DESIGN . DEVELOPMENT . TEST . MANUFACTURE Greenway Business Centre, Harlow Business Park, Harlow, Essex CM19 5QE Tel: 01279 406960 Fax: 01279 406961 Web: http://www.whatpowersupply.com e-mail: sales@whatpowersupply.com 500 WATT BATTERY CONVERTERS OUTPUT 12V INPUT 5.0V at 100A (450W) SM5100 9.0V at .

SM5100-PDSDesignSolutions.pdf

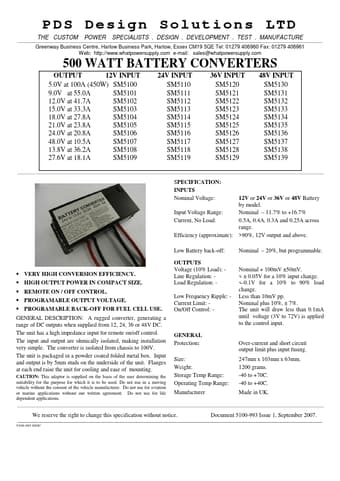

SM5100 Datasheet Preview — Preview of SM5100 PDF

Datasheet Details

Part number:

SM5100

Manufacturer:

PDS Design Solutions

File Size:

148.22 KB

Description:

(sm5100 - sm5139) 500 watt battery converters.
