SM5100AF-E, SM520AF-E Datasheet - Leshan Radio Company

SM5100AF-E, SM520AF-E, Schottky Barrier Rectifiers

SM520AF-E thru SM5100AF-E Schottky Barrier Rectifiers Reverse Voltage 20 to100V Forward Current 5.0A .

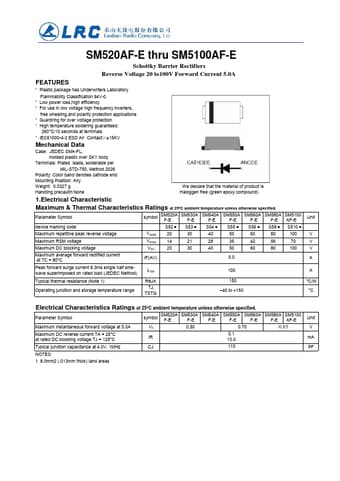

datasheet Preview Page 1 from Datasheet4u.com

SM520AF-E-LeshanRadioCompany.pdf

SM5100AF-E Datasheet Preview — This datasheet PDF includes multiple part numbers: SM5100AF-E, SM520AF-E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM5100AF-E, SM520AF-E

Manufacturer:

Leshan Radio Company

File Size:

267.60 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SM5100AF-E, SM520AF-E.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals
* IEC61000-4-2 ESD Air Contact≥±15KV Mechanical Data Case: JEDEC SMA-FL, molded plastic over SKY body Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity:
