BP2306XJ - Dimmable Non-isolated APFC Buck LED Driver

Datasheet Summary

Description

BP2306XJ is a PWM/Analog dimmable high precision non-isolated buck APFC LED driver, specially designed for universal mains with constant current control.

Suitable for 90Vac-265Vac full range input voltage.

Features

  • Compatible with PWM and Analog Dimming.
  • PWM Dimming Range 1~100%.
  • Analog Dimming Range 5~100%.
  • Active-PFC for High PF and Low THD.
  • Ultra low standby power consumption.
  • Single winding inductance.
  • No COMP capacitor.
  • ±3% LED Output Current Accuracy.
  • Excellent Line and Load Regulation.
  • VCC Under Voltage Protection.
  • Cycle by Cycle Current Limit.
  • LED Short Protection.
  • Thermal Regulation Function.
  • SOP-8 Package.

📥 Download Datasheet

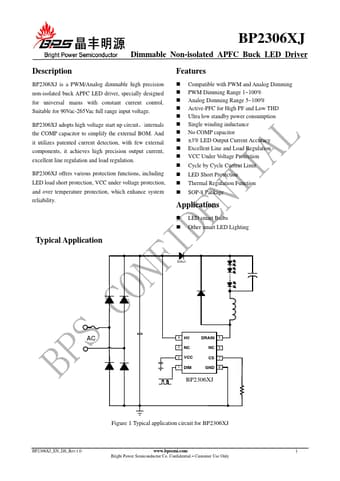

Datasheet preview – BP2306XJ

Datasheet Details

Part number BP2306XJ
Manufacturer BPS
File Size 149.64 KB
Description Dimmable Non-isolated APFC Buck LED Driver
Datasheet download datasheet BP2306XJ Datasheet
Additional preview pages of the BP2306XJ datasheet.

📁 Similar Datasheet

  • BP23F782D - The 5-phase stepping Set (Sanyo Denki)
  • BP23F782S - The 5-phase stepping Set (Sanyo Denki)
  • BP23F783D - The 5-phase stepping Set (Sanyo Denki)
  • BP23F783S - The 5-phase stepping Set (Sanyo Denki)
  • BP23F851D - The 5-phase stepping Set (Sanyo Denki)
  • BP23F851S - The 5-phase stepping Set (Sanyo Denki)
  • BP23F852D - The 5-phase stepping Set (Sanyo Denki)
  • BP23F852S - The 5-phase stepping Set (Sanyo Denki)
  • BP23F853D - The 5-phase stepping Set (Sanyo Denki)
  • BP23F853S - The 5-phase stepping Set (Sanyo Denki)
Other Datasheets by BPS
  • BP2309 - Non-isolated buck active PFC LED driver
  • BP2318 - Dimmable Non-isolated Buck APFC LED Driver
  • BP2325 - Non-isolated buck active PFC LED driver
  • BP2325A - Non-isolated Buck APFC Offline LED Driver
  • BP2325AJ - Non-isolated Buck APFC Offline LED Controller
  • BP2326A - Non-isolated Buck APFC Offline LED Driver
  • BP2326AJ - Non-isolated Buck APFC Offline LED Controller
  • BP2327 - Non-isolated step-down active PFC LED driver chip

Full PDF Text Transcription

Click to expand full text
BP2306XJ Dimmable Non-isolated APFC Buck LED Driver Description BP2306XJ is a PWM/Analog dimmable high precision non-isolated buck APFC LED driver, specially designed for universal mains with constant current control. Suitable for 90Vac-265Vac full range input voltage. BP2306XJ adopts high voltage start up circuit，internals the COMP capacitor to simplify the external BOM. And it utilizes patented current detection, with few external components, it achieves high precision output current, excellent line regulation and load regulation. BP2306XJ offers various protection functions, including LED load short protection, VCC under voltage protection, and over temperature protection, which enhance system reliability.
