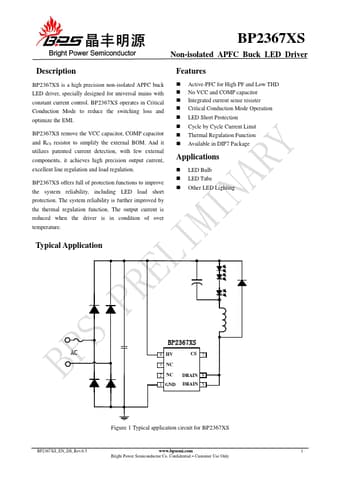

Description
BP2367XS Non-isolated APFC Buck LED Driver .
BP2367XS is a high precision non-isolated APFC buck LED driver, specially designed for universal mains with constant current control.
Features
* Active-PFC for High PF and Low THD
* No VCC and COMP capacitor
* Integrated current sense resister
* Critical Conduction Mode Operation
* LED Short Protection
* Cycle by Cycle Current Limit
* Thermal Regulation Function
Applications
* LED Bulb
* LED Tube
* Other LED Lighting
Typical Application
BP2367XS
AC
4 HV
CS 7
3 NC
2 NC DRAIN 6 1 GND DRAIN 5
Figure 1 Typical application circuit for BP2367XS
BP2367XS_EN_DS_Rev.0.5
www. bpsemi. com
1
