BP2866AJ - Non-isolated Buck Offline LED Driver

BP2866AJ Description

BP2866XJ Non-isolated Buck Offline LED Driver .
BP2866XJ is a high precision Buck constant current LED driver.

BP2866AJ Features

* No VCC Capacitor and Startup Resistor
* Integrated HV JFET for IC Power Supply
* Internal 500V Power MOSFET
* Critical Conduction Mode Operation
* ±5% LED Output Current Accuracy
* Configurable OVP by Rovp resistor
* LED Short Protection
* Thermal Regulation Functio

BP2866AJ Applications

* LED Bulb
* LED Tube
* Other LED Lighting Typical Application AC BP2866XJ 5 DRAIN HV 4 6 DRAIN NC 3 ROVP 2 7 CS GND 1 Figure 1. Typical application circuit for BP2866XJ BP2866XJ_EN _DS_Rev.1.0 www. bpsemi. com 1 BPS Confidential
* Customer Use Only Naming rules BP2

📥 Download Datasheet

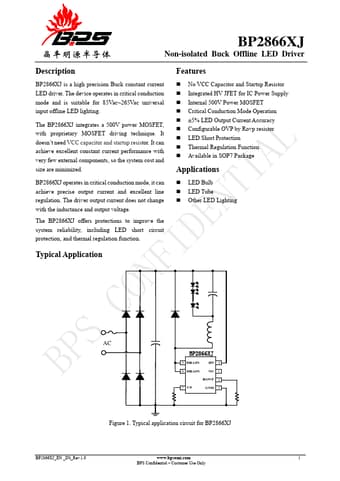

Preview of BP2866AJ PDF
datasheet Preview Page 2

Datasheet Details

Part number
BP2866AJ
Manufacturer
BPS
File Size
237.56 KB
Datasheet
BP2866AJ-BPS.pdf
Description
Non-isolated Buck Offline LED Driver
