BF1501 Datasheet - BYD Microelectronics

Off Line AC/DC Switch

BF1501 Features

* z Low start-up current

* Typ.15 µA

* Max.25 µA z Low operating current

* Typ.2 mA

* Max.5 mA z UV

BF1501 General Description

The THC0X switcher ICs cost effectively replace all power supplies up to 5W output power based on unregulated isolated linear transformer (50/60HZ). Unlike conventional PWM (pulse width modulation) controllers, it regulates the output voltage in a new method of off-time modulation control. The contr.

BF1501 Datasheet (214.12 KB)

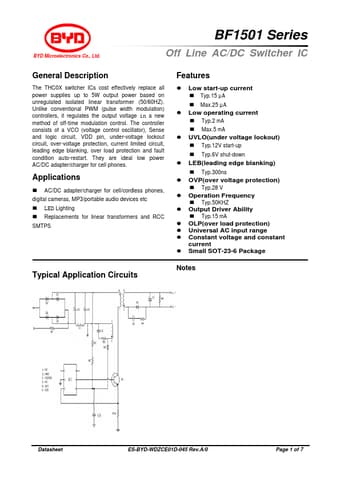

BF1501 Datasheet Preview — Preview of BF1501 PDF

Datasheet Details

Part number:

BF1501

Manufacturer:

BYD Microelectronics

File Size:

214.12 KB

Description:

Off line ac/dc switch.
