BIP60020 Datasheet - BYD Microelectronics

Intelligent Power Module

BIP60020 Features

* Very low thermal resistance due to using DBC

* 600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection

* Divided negative dc-link terminals for inverter current sensing applications

* Single-grounded power supply due to built-in HVIC

* Isolat

BIP60020 General Description

BIP60020 is an advanced intelligent power module that BYD has newly developed and designed to provide very compact and high performance as ac motor drivers mainly targeting low-power inverter-driven applications like air conditioner and washing machine. It combines optimized circuit protection and d.

BIP60020 Datasheet (666.60 KB)

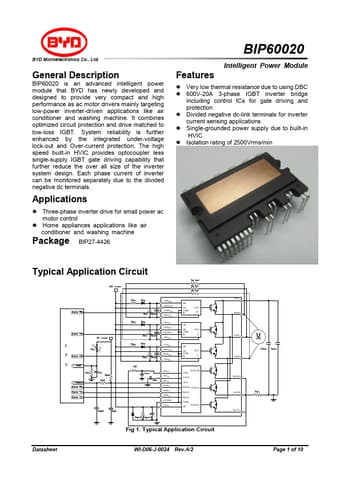

BIP60020 Datasheet Preview — Preview of BIP60020 PDF

Datasheet Details

Part number:

BIP60020

Manufacturer:

BYD Microelectronics

File Size:

666.60 KB

Description:

Intelligent power module.
