BIPN60015C Datasheet - BYD

Intelligent Power Module

BIPN60015C Features

* Very low thermal resistance due to using DBC

* 600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection

* Divided negative dc-link terminals for inverter current sensing applications

* Single-grounded power supply due to built-in HVIC and bootstra

BIPN60015C General Description

BIPN60015C is an advanced intelligent power module that BYD has newly developed and designed to provide very compact and high performance as ac motor drivers mainly targeting low-power inverter-driven applications like air conditioner and washing machine. It combines optimized circuit protection and.

BIPN60015C Datasheet (718.85 KB)

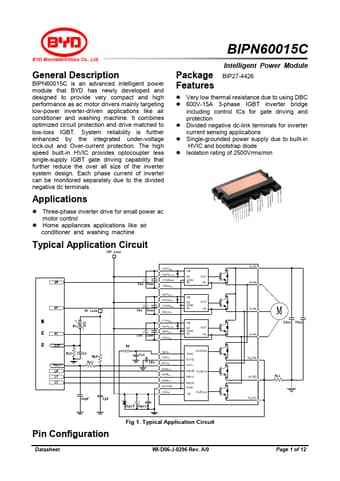

BIPN60015C Datasheet Preview — Preview of BIPN60015C PDF

Datasheet Details

Part number:

BIPN60015C

Manufacturer:

BYD

File Size:

718.85 KB

Description:

Intelligent power module.
