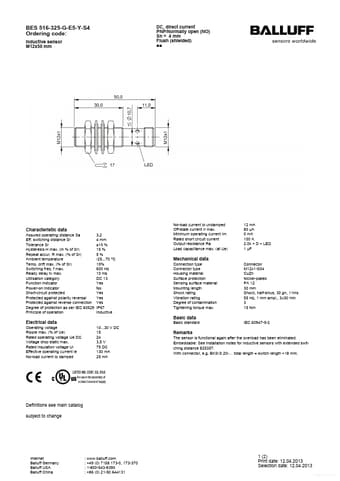

BES 516-325-G-E5-Y-S4 Ordering code:
Inductive sensor M12x50 mm
DC, direct current PNP/Normally open (NO) Sn = 4 mm Flush (shielded) ■■
Characteristic data
Assured operating distance Sa Eff. switching distance Sr Tolerance Sr Hysteresis H max. (in % of Sr) Repeat accur. R max. (% of Sr) Ambient temperature Temp. drift max. (% of Sr) Switching freq. f max. Ready delay tv max. Utilisation category Function indicator Power-on indicator Short-circuit protected Protected against polarity reversal Protected against reverse connection Degree of protection as per IEC 60529 Principle of operation 3,2 4 mm ±10 % 15 % 5% -25...70 °C 10% 600 Hz 10 ms DC 13 Yes No Yes Yes Yes IP67 Inductive
No-load current Io undamped Off-state current Ir max.
BES516-325-G-E5-Y-S4 Datasheet
