BG12C Cascadable InGaP HBT Gain Block

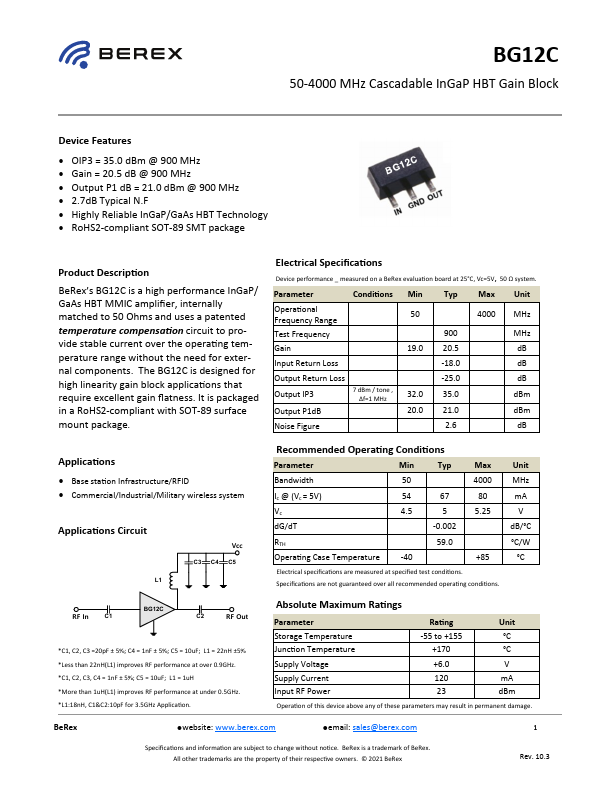

📥 Download Datasheet  Datasheet Preview Page 1

Description

BG12C 50-4000 MHz Cascadable InGaP HBT Gain Block Device .
BeRex’s BG12C is a high performance InGaP/ GaAs HBT MMIC amplifier, internally matched to 50 Ohms and uses a patented temperature compensation circuit.

📥 Download Datasheet

Preview of BG12C PDF

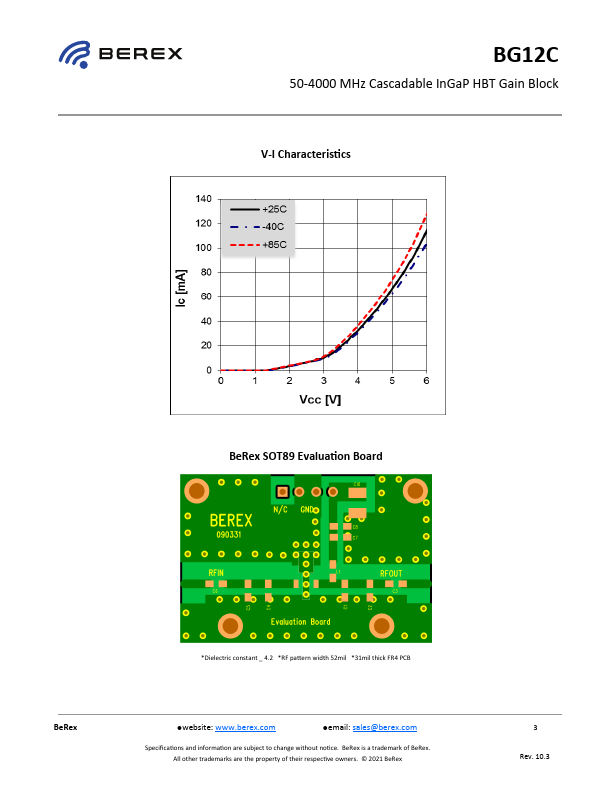

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BG12C
Manufacturer
BeRex
File Size
1.20 MB
Datasheet
BG12C-BeRex.pdf
Description
Cascadable InGaP HBT Gain Block

Features

* OIP3 = 35.0 dBm @ 900 MHz
* Gain = 20.5 dB @ 900 MHz
* Output P1 dB = 21.0 dBm @ 900 MHz
* 2.7dB Typical N. F
* Highly Reliable InGaP/GaAs HBT Technology

Applications

* that require excellent gain flatness. It is packaged in a RoHS2-compliant with SOT-89 surface mount package. Electrical Specifications Device performance _ measured on a BeRex evaluation board at 25°C, Vc=5V, 50 Ω system. Parameter Conditions Min Typ Max Unit Operational Frequency Range 50 40
