BG11C Datasheet, Block, BeRex

BG11C Features

  • Block
  • OIP3 = 30.0 dBm @ 1900 MHz
  • Gain = 20.8 dB @ 1900 MHz
  • Output P1 = 17.3 dBm @1900 MHz
  • Patented temperature compensation
  • RoHS2-compliant S

PDF File Details

Part number:

BG11C

Manufacturer:

BeRex

File Size:

1.45MB

Download:

📄 Datasheet

Description:

Cascadable ingap hbt gain block. BeRex’s BG11C is a high performance InGaP HBT MMIC amplifier is internally matched to 50 Ohms and uses a patented temperature compens

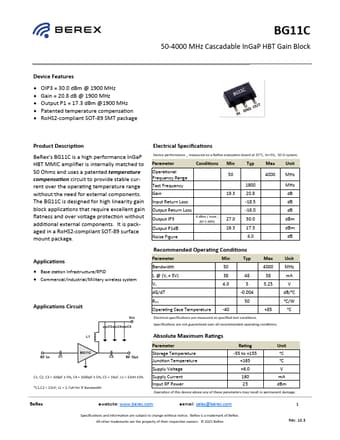

Datasheet Preview: BG11C 📥 Download PDF (1.45MB)
Page 2 of BG11C Page 3 of BG11C

BG11C Application

  • Applications that require excellent gain flatness and over voltage protection without additional external components. It is packaged in a RoHS2-comp
