S553-5841-02 (S553-5841-xx) 10BASE-TNETWORKCOMPONENTS

S553-5841-02 Description

defining a degree of excellence 10BASE-T NETWORK COMPONENTS 960073A * Designed for use with Seeq 84C24 and 8425 10Base-T PHY transceivers

S553-5841-02 Applications

* good PCB layout and proper grounding techniques are very critical to achieve FCC class A and B equipment approvals. Bel recommendations are available and can be provided by contacting our engineering department or your local sales representative.
* Bel's low profile, surface mount packaging

📥 Download Datasheet

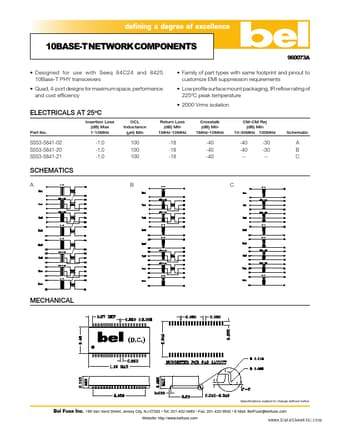

Preview of S553-5841-02 PDF
datasheet Preview Page 2

Datasheet Details

Part number
S553-5841-02
Manufacturer
Bel Fuse
File Size
380.94 KB
Datasheet
S553-5841-02_BelFuse.pdf
Description
(S553-5841-xx) 10BASE-TNETWORKCOMPONENTS
