BC301N-D - Gas Discharge Tube

Product Overview

Bencent

Datasheet Details

Part number	BC301N-D
Manufacturer	Bencent
File Size	275.81 KB
Description	Gas Discharge Tube
Datasheet	BC301N-D Datasheet

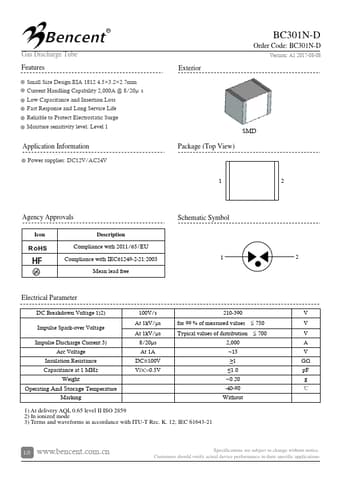

Additional preview pages of the BC301N-D datasheet.

Product details

Description

Compliance with 2011/65/EU Compliance with IEC61249-2-21:2003 Mean lead free Schematic Symbol 1 Electrical Parameter DC Breakdown Voltage 1)2) Impulse Spark-over Voltage Impulse Discharge Current 3) Arc Voltage Insulation Resistance Capacitance at 1 MHz Weight Operating And Storage Temperature Marking 100V/s At 1kV/μs At 1kV/μs 8/20μs At 1A DC=100V VDC=0.5V 210-390 for 99 % of measured values  750 Typical values of distribution  700 2,000 ~15 ≥1 ≤1.0 ~0.20 -40-90 Without 1) At deliver

Features

Small Size Design EIA 1812 4.5×3.2×2.7mm Current Handling Capability 2,000A @ 8/20μ s Low Capacitance and Insertion Loss Fast Response and Long Service Life Reliable to Protect Electrostatic Surge Moisture sensitivity level: Level 1.
