BC300 - (BC300 - BC302) NPN EPITAXIAL PLANAR SILICON TRANSISTORS

Product Overview

CDIL

Datasheet Details

Part number	BC300
Manufacturer	CDIL
File Size	107.00 KB
Description	(BC300 - BC302) NPN EPITAXIAL PLANAR SILICON TRANSISTORS
Datasheet	BC300 Datasheet

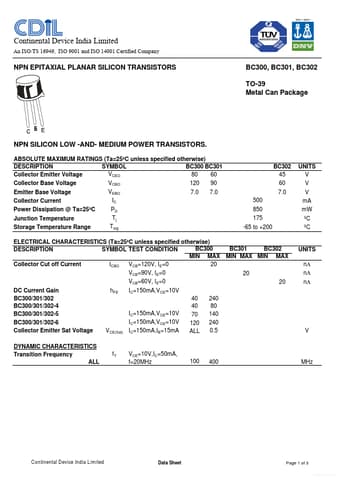

Additional preview pages of the BC300 datasheet.

Product details

Description

SYMBOL BC300 BC301 VCEO 80 60 Collector Emitter Voltage VCBO Collector Base Voltage 120 90 Emitter Base Voltage Collector Current Power Dissipation @ Ta=25ºC Junction Temperature Storage Temperature Range VEBO IC PD Tj Tstg 7.0 7.0 500 850 175 -65 to +200 BC302 45 60 7.0 UNITS V V V mA mW ºC ºC ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) BC300 BC301 BC302 DESCRIPTION SYMBOL TEST CONDITION MIN MAX MIN MAX MIN MAX VCB=120V, IE=0 ICBO 20 Collector Cut off Current VCB=90V, IE=0
