BC308B, BC307 Datasheet - CDIL

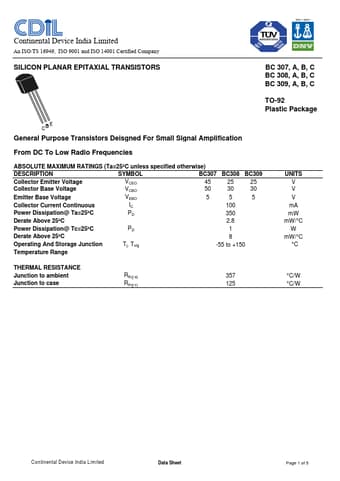

BC308B SILICON PLANAR EPITAXIAL TRANSISTORS

SYMBOL BC307 BC308 BC309 Collector Emitter Voltage Collector Base Voltage VCEO VCBO 45 25 25 50 30 30 Emitter Base Voltage Collector Current Continuous Power Dissipation@ Ta=25ºC VEBO IC PD 555 100 350 Derate Above 25ºC 2.8 Power Dissipation@ Tc=25ºC PD 1 Derate Above 25ºC 8 Operatin.

BC307-CDIL.pdf

This datasheet PDF includes multiple part numbers: BC308B, BC307. Please refer to the document for exact specifications by model.
BC308B Datasheet Preview Page 2 BC308B Datasheet Preview Page 3

Datasheet Details

Part number:

BC308B, BC307

Manufacturer:

CDIL

File Size:

106.26 KB

Description:

Silicon planar epitaxial transistors.

Note:

This datasheet PDF includes multiple part numbers: BC308B, BC307.
Please refer to the document for exact specifications by model.
