BQ2014H Datasheet - Benchmarq

Low-Cost NiCd/NiMH Gas Gauge

BQ2014H Features

* ➤ Accurate measurement of available capacity in NiCd or NiMH batteries ➤ Low-cost battery management so- lution for pack integration - As little as 1 2 square inch of PCB for complete circuit - Low operating current (120µA typical) - Less than 100nA of data retention current ➤ High-s

BQ2014H General Description

The bq2014H NiCd/NiMH Gas Gauge IC is intended for batterypack or in-system installation to maintain an accurate record of available battery capacity. The IC monitors a voltage drop across a sense resistor connected in series between the negative battery terminal and ground to determine charge and d.

BQ2014H Datasheet (869.99 KB)

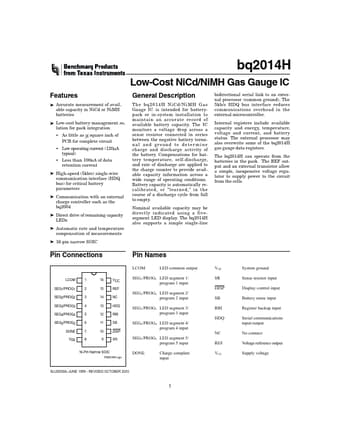

BQ2014H Datasheet Preview — Preview of BQ2014H PDF

Datasheet Details

Part number:

BQ2014H

Manufacturer:

Benchmarq

File Size:

869.99 KB

Description:

Low-cost nicd/nimh gas gauge.
